India is the largest 2W manufacturer in the world. Consequently, servicing and maintenance of 2W play a significant role.

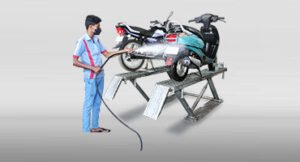

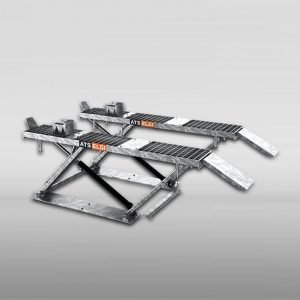

Cleaning is the first step in servicing a vehicle and 2W washing requires the right set of tools. A 2W washing lift is the most important equipment in washing that helps technicians have access to the hard-to-reach areas of a two-wheeler while washing. Keeping with the market trend, we at ATS ELGI have launched Smart Duo washing lift.
This system is designed to wash two vehicles at a time, resulting in significant savings of time and water usage. It can support indoor and outdoor installation, since the equipment is fully galvanised. Equipped with foldable ramps to ensure the operator could safely get 360 degree accessibility to clean the 2W adding to safety features the equipment is fitted with Mechanical Safety Locks to ensure safety to the operators and the 2W on the lift.
| Sl. No | Parameter | Unit | Data |
|---|---|---|---|
| 1 | Max Lifting capacity | kg | 1000 |
| 2 | Max Lifting capacity of each platform | kg | 500 |
| 3 | Max lifting height with load | mm | 815 |
| 4 | Minimum height | mm | 200 |
| 5 | Distance Between two Platform | mm | 710 |
| 5 | Top platform size | mm | 2000 x 350 |
| 6 | Type | – | Electro – hydraulic |
| 7 | Safety mechanism | – | Mechanical |
| 8 | Safety lock release | – | Manual |
| 9 | Lifting time | Sec | 20 |
| 10 | Lowering time | Sec | 30 |
| 11 | Weight of the unit | kg | 265 approx. |
| 12 | Overall dimensions (L x W x H) | mm | 2736 x 1410 x 200 |
| 13 | Power Pack Motor | Hp | 3 |
