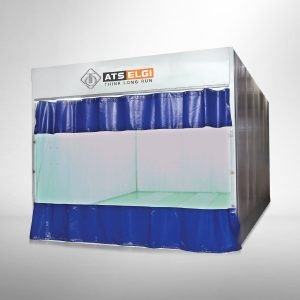

Prep Station is basically used for carrying out all preparatory works prior to painting, Even minor paint jobs can also be done inside this specially designed air velocity induced booth.
During sanding mode and putty application, the extracted air from inside Will be exhausted to atmosphere after 3 levels of filtration.
During primer and painting operation, the extracted air from inside Will be circulated after 4 Levels of filtration process.
Direction of air flow will be controlled by automatic pneumatic dampener provided In the air duct based on the operating mode selected.
Model : PREP MASTER
| Specification | Unit | Range |
|---|---|---|
| Type | – | Downdraft – 6.3 m |
| Side wall | – | Polyurethane Sandwich panel |
| Panel thickness | mm | 50 |
| Door | – | PVC Curtain |
| Blower type | – | Centrifugal Blower |
| Blower Capacity | m3/hr | 18000 |
| Motor Power | kW/ HP | 5.5/ 7.5 |
| Input Supply | – | 3Ф, 415V +10%/ – 15% , 50Hz ±5% |
| Ceiling filter media size | Micron | 5 |
| Pocket filter media size | Micron | 10 |
| Maximum capacity of metal base | Kg | 3000 |
| Maximum capacity of Grids | Kg | 900 |
| No. of Tube lights | Nos. | 24 (6 Frames with 4 Nos. Tube light each) |
| Tube light power | Watt | 36/ Tube light |
| Air velocity | m/s | 0.2 |
| Required air pressure | kg/cm2 | 5 – 6 |
| Working temperature | ºC | 0 to +70 |
| Overall dimensions (L X W X H) | mm | 6523 x 5190 x 3330 |
| Inner dimensions (L X W X H) | mm | 6300 x 3675 x 2680 |
