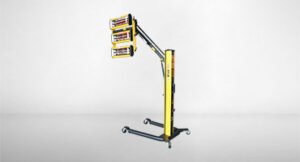

Infrared dryers are used in body shop for drying painted jobs with better quality at a very short time.In a traditional paint booth the hot air is made to pass on the jobs which will dry it from top-to-bottom. Due to this some moisture will remain inside the layers which will result in improper finish/short life of the job done. Whereas IR dryers uses short wave technology which heats the job from bottom-to-top so that the moisture inside each layer is eliminated which results in quick drying time and ensures long life for the painted jobs.
| S.No | Specifications | IR – 3 Lamp Model |
|---|---|---|
| 1 | Input Supply | 1 Ph, 230 V, 50 HZ |
| 2 | No. of Lamps | 3 |
| 3 | Automatic distance sensor | Yes |
| 4 | Display type | LED |
| 5 | Temperature | 40-100 deg |
| 6 | Curing Area | 1200 x 1000 mm |
| 7 | Lifter type | Hydraulic |
| 8 | Turning Radius of Lamp | 360 deg |
| 9 | Technology | Short wave |
| 10 | Dimension | 1000 x 750 x 1800 mm |
| 11 | weight | 45 Kg |
| 12 | Lamp | 21 inch quartz halogen lamp |
