    COLLISION REPAIR SYSTEM – BRAVO – 360

    Straightening tower made of special aluminum enables straightening of the entire car body, which is unique. Changing of pulling angle is quick and easy.

    Repair system possesses versatile lifting features

    • Lift on wheels standing on the ramps or on chassis pads
    • Better productivity for the body shop
    • Almost all jobs in the collision repair process, except painting, can be done without moving the vehicle from one place to another.
    • No need to get a separate lift.

    Model : B15

    • Virtually unlimited holding and positioning options.
    • True 360-degree pulling capability of pulling tower.
    • Unique tower design that allows ganging around the deck – even at the corners.
    • Vertical Pulling tower with telescoping heads provides unsurpassed 10 Ton power at the hook.
    • The tilting platform and drive-on ramps makes loading/ unloading faster than ever before.
    • Unique Single Bolt Sill Clamping allows mounting & demounting the car faster.
    • Compatible to use Electronic Measuring System.
    • Unique Design – Permanently attached plat form allows using welding & cutting equipments on bench while pulling.
    Specifications/ FeaturesBRAVO 360BRAVO 360 +
    Model4 Clamp System4 Clamp System
    Max Lifting Capacity3000 kg3000 kg
    Clear Lifting Height520 mm1100 mm
    Bench Dimensions (L x B x H)5500 x 2100 x 520 mm5500 x 2100 x 1100 mm

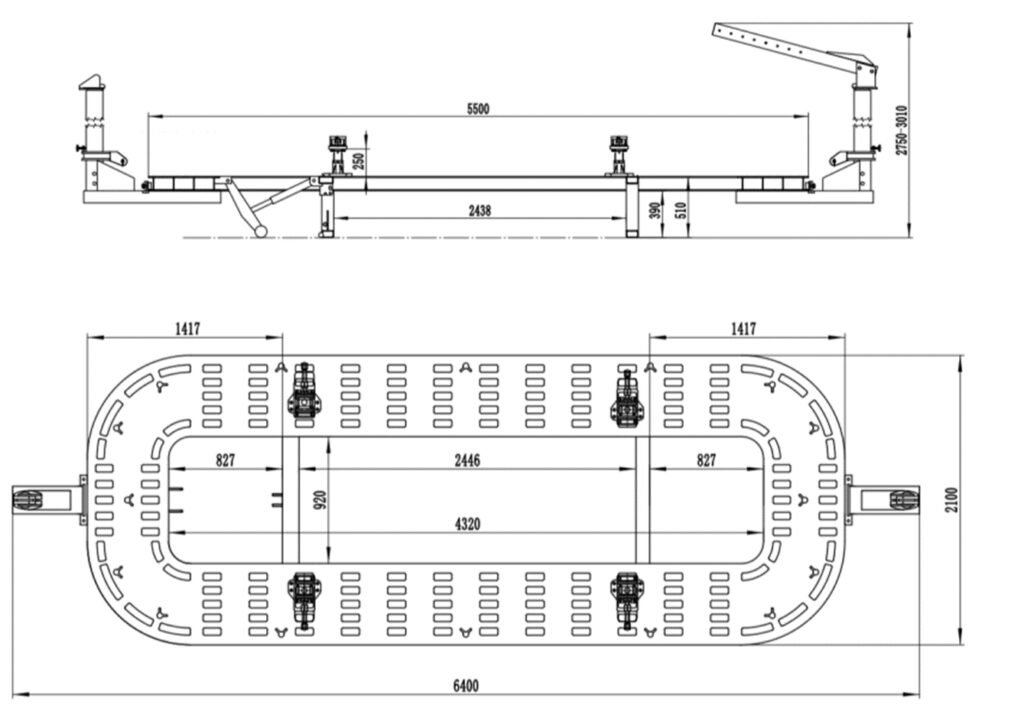

    Installation Dimensions (L x B)6500 x 3400 mm x 2670 mm6500 x 3400 mm x 2670 mm
    Pulling Operation Height520 mm520 mm
    Max Pulling Force10 Ton10 Ton
    Lifting MechanismHydro PneumaticHydro Pneumatic
    Compressed Air Requirement8 bar8 bar
    Vehicle Loading Time5-6 min5-6 min
    Pulling Tower DesignVertical Pulling TowerVertical Pulling Tower
    Pulling Tower RotationSliding Type TowerSliding Type Tower
    Pulling Tower LockingNot ApplicableNot Applicable
    Adaptable with 2D/3D measuring SystemsYESYES
    Roof PullingPossible (Included)Possible (Included)

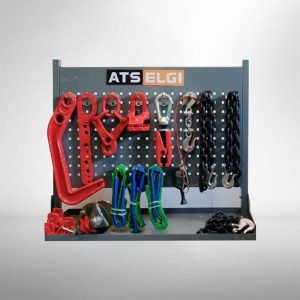

    Pulling & Safety AccessoriesIncludedIncluded
    Chassis Pulling CLAMPSOptionalOptional
