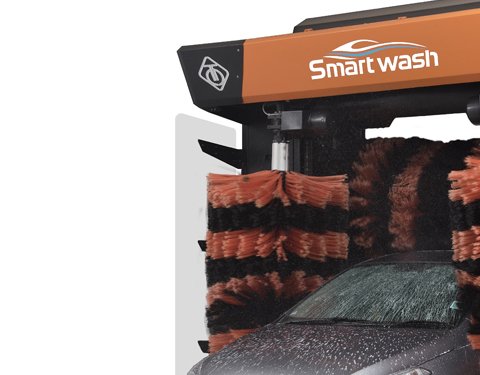

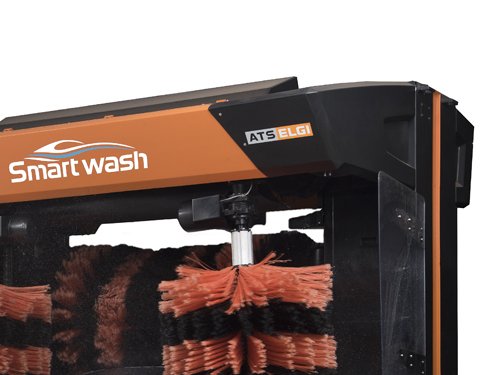

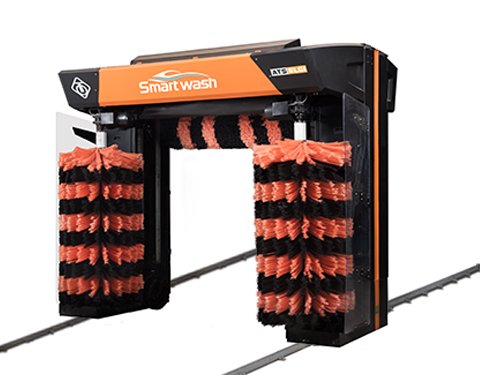

    Automatic Car Washer – Smartwash

    An ingenious equipment which reduces your manpower and amplifies your efficiency. The new generation Smart Wash is our best-ever Automatic Car washer in India. It comes with better technical efficiency and longevity. This automatic car wash machine is equipped to deliver a spotless and glossy car in a little more than five minutes.

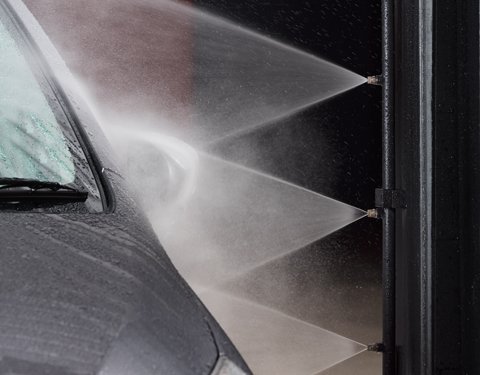

    • Stainless Steel precision nozzles

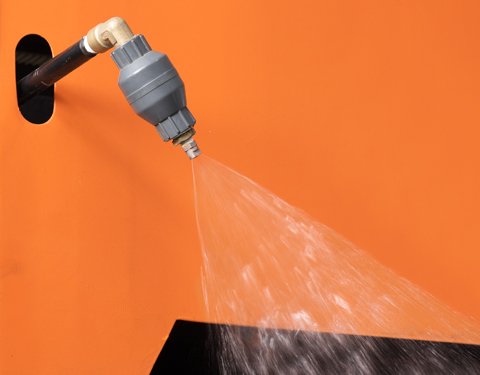

    • Wax to improve reflective index

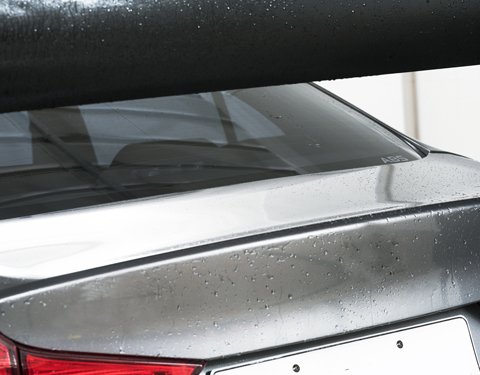

    • Optimized flow control in side and top blower
    • Increased Productivity( 3-7 minute operation time)
    • Reduced water consumption ( 85 liters to 130 liters per car )
    • Reduced labor costs ( Only one operator needed )
    Specifications Table
    SPECIFICATIONS SMART WASH
    NO OF BRUSHES Vertical brush: 2 Nos

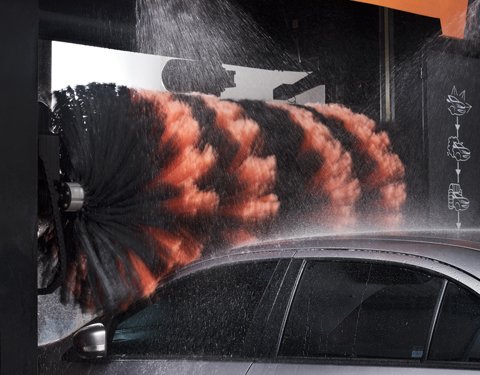

    Horizontal brush: 1 Nos
    RECOMMENDED BAY DIMENSION Length: 10000 mm
    Width: 4600 mm
    Height: 5000 mm
    MAX. VEHICLE ACCESS Length: 5200 mm
    Width: 2000 mm
    Height: 2300 mm
    WASHING SYSTEM PLC AUTOMATION
    BRUSH MATERIAL Polyethylene
    SHAMPOO / WAX MIXING CONTROLS Venturi system
    DRYING Automatic
    Comparison Table
    Parameters Smart Wash HP Smart Wash FP Smart Wash SP Smart Wash EP

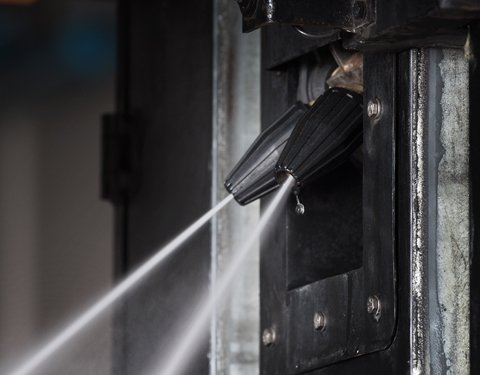

    High Pressure Pre Wash ✗ ✓ ✗ ✗
    Body Wash ✓ ✓ ✓ ✓

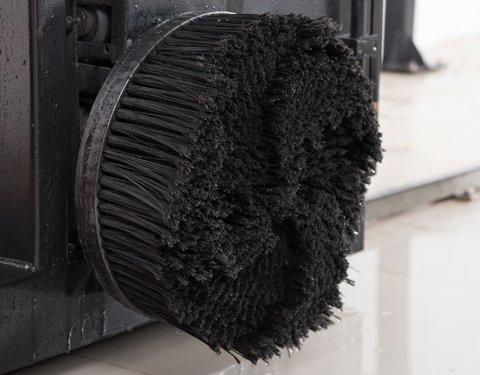

    Wheel Wash ✓ ✗ ✗ ✗
    Drying ✓ ✓ ✓ ✗
    Under Chassis Washer (Optional) ✓ ✓ ✓ ✓
    Shampoo ✓ ✓ ✓ ✓
    Wax ✓ ✓ ✗ ✓

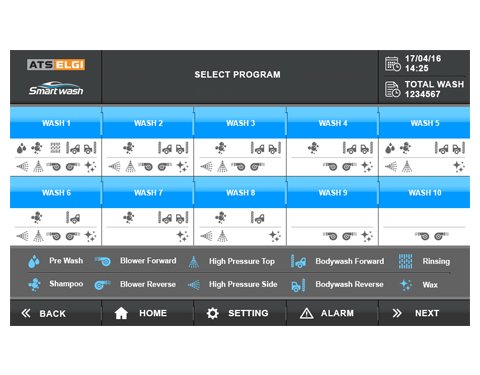

    HMI Touchscreen Operating Panel ✓ ✓ ✓ ✗
    Cycle Time Per Car, Min 6 – 7 5 – 6 5 – 6 3 – 4
    Water Consumption Per Car, L 120 – 130 85 – 100 85 – 100 85 – 100
    Power Supply 3ph 415VAC (+10%, -15%), 50Hz 3ph 415VAC (+10%, -15%), 50Hz 3ph 415VAC (+10%, -15%), 50Hz 3ph 415VAC (+10%, -15%), 50Hz
    Connected Load 29.5/22 HP/kW 22/16.5 HP/kW 21.5/16 HP/kW 5.5/4 HP/kW
    Maximum Operating Load 18/13.5 HP/kW 18/13.5 HP/kW 18/13.5 HP/kW 5.5/4 HP/kW
    Power Consumption 0.8 0.7 0.7 0.2
    Air Requirement 7 bar/5 CFM 7 bar/5 CFM 7 bar/5 CFM 7 bar/5 CFM
