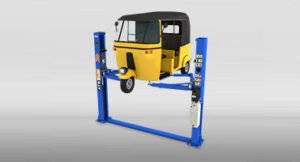

ATS ELGI introduce new 3W -Two Post Hydraulic Lift – 1.0T which is suitable for lifting 3W passenger & goods carrier including both IC and EV Vehicles for various applications. ATS ELGI lift is the best choice for 3W vehicles as it comes with exclusively designed lifting Arms to lift these vehicles in a safe way, facilitating easy vehicle services.
Model: 3W – Two Post Hydraulic Lift 1.0 T
| Lifting Capacity | 1000 Kgs |
| Lifting Time | 55 sec |
| Min. Lifting Height | 115 mm |
| Max. Lifting Height | 1800 mm |
| Overall dimensions | 3200 x 3320 x 2728 mm |
| Overall dimensions | 3200 x 3320 x 2728 mm |
| Drive Through Clearance | 2554 mm |
| Oil grade | ATS ELGI Hoist Lube |
| Oil tank capacity | 12 Liters |
| Motor Power* | 2.2 KW, 3 HP, 3 PH |
| Power Supply | 415 V / 50 Hz |
| Safety Mechanism | Mechanical |
