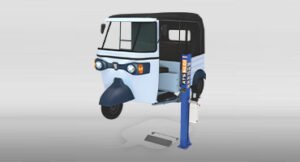

ATS ELGI introduce new 3W -Single Column Lift – 2.0T which is suitable for lifting 3W passenger & goods carrier including both IC and EV Vehicles for various applications. ATS ELGI lift is the best choice for 3W vehicles as it comes with exclusively designed lifting Arms to lift these vehicles in a safe way, facilitating easy vehicle services.

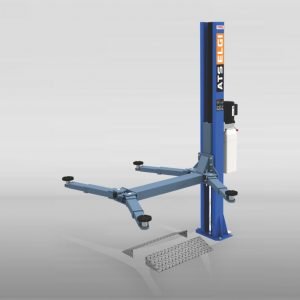

Model: 3W – Single Column Lift
Suitable for: 3-Wheeler Passenger & Goods Carrier
| Lifting Capacity (kg) | 2000 |
| Lifting Time (Secs) | 55 |
| Max. Lifting Height (mm) | 1800 |
| Min. Lifting Height (mm) | 120 |
| Overall dimensions (LxWxH)(mm) | 2400 x 1950 x 2600 |
| Oil grade | ATS ELGI Hoist Lube |
| Oil tank capacity (Litres) | 12 |
| Motor Power* | 2.2 KW, 3 HP, 3 PH |
| Power Supply | 415 V / 50 Hz |
| Safety Mechanism | Mechanical |
